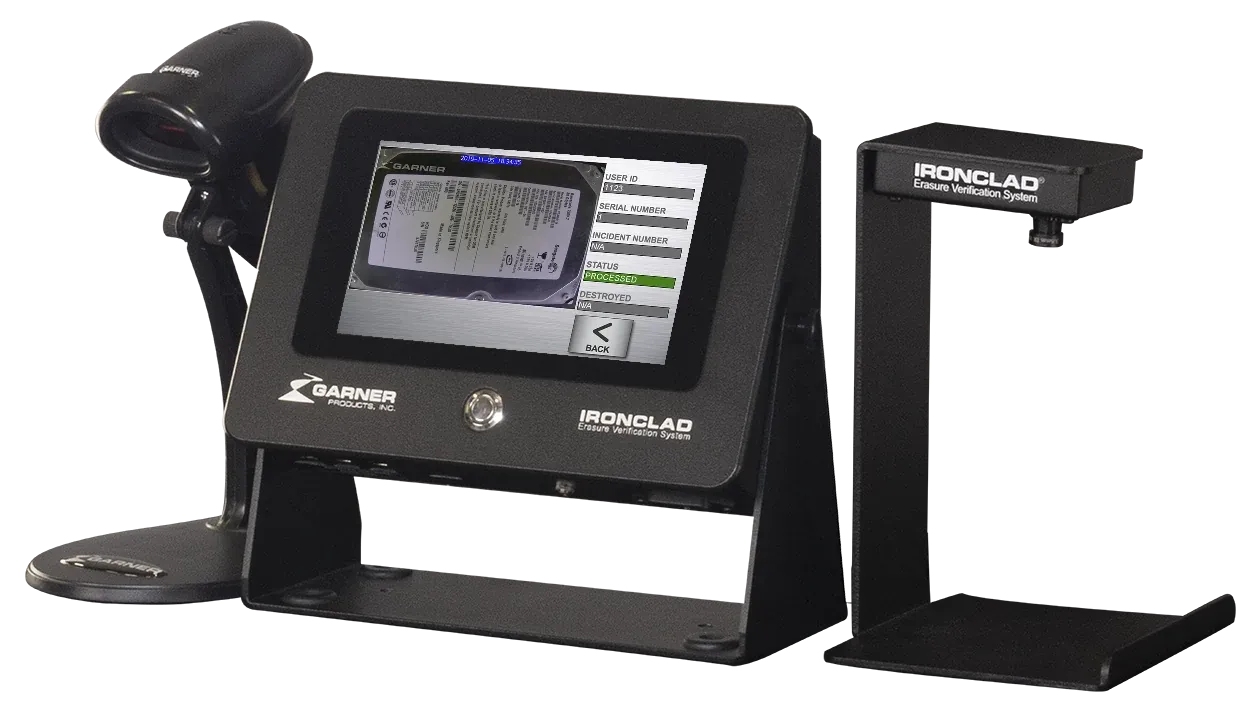

Garner IRONCLAD-E

Verification system that records every processed drive: serial number, operator, date and time, field strength or crush depth, and a photo. Generates certificates of erasure and destruction.

EMEA version
Screen
7″ touch
Storage
16 GB
Power
15 W

Delivery, installation and instruction by Bronneberg’s own service team. On-site demonstration on request.

Description

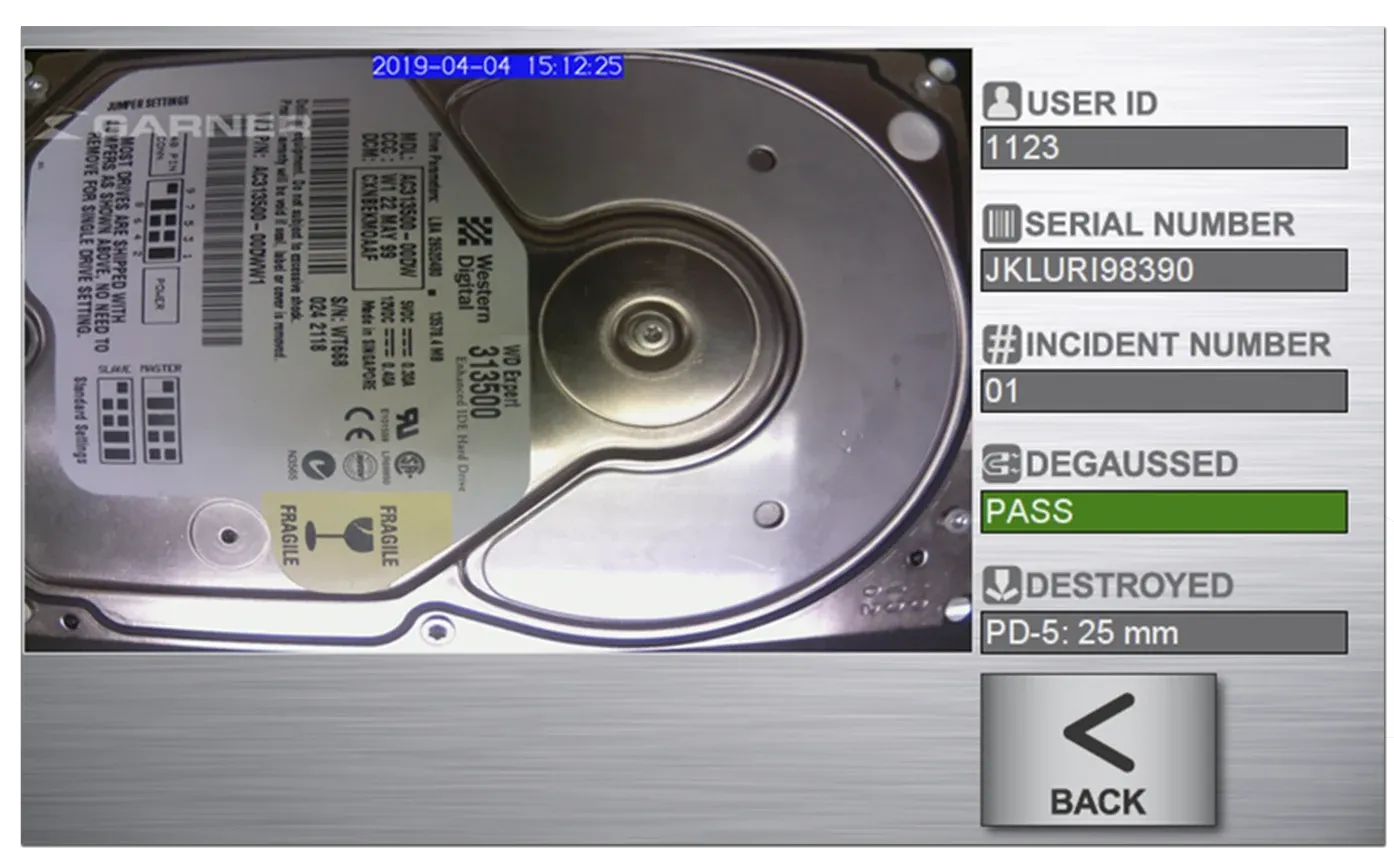

Erasing a drive is one thing; proving it is another. IRONCLAD records every item that passes through a Garner machine. You scan the serial number, the machine does its work, and IRONCLAD stores the result with a photo of the media: the measured field strength and a pass/fail result after degaussing, or the crush depth after destruction with the PD-5E.

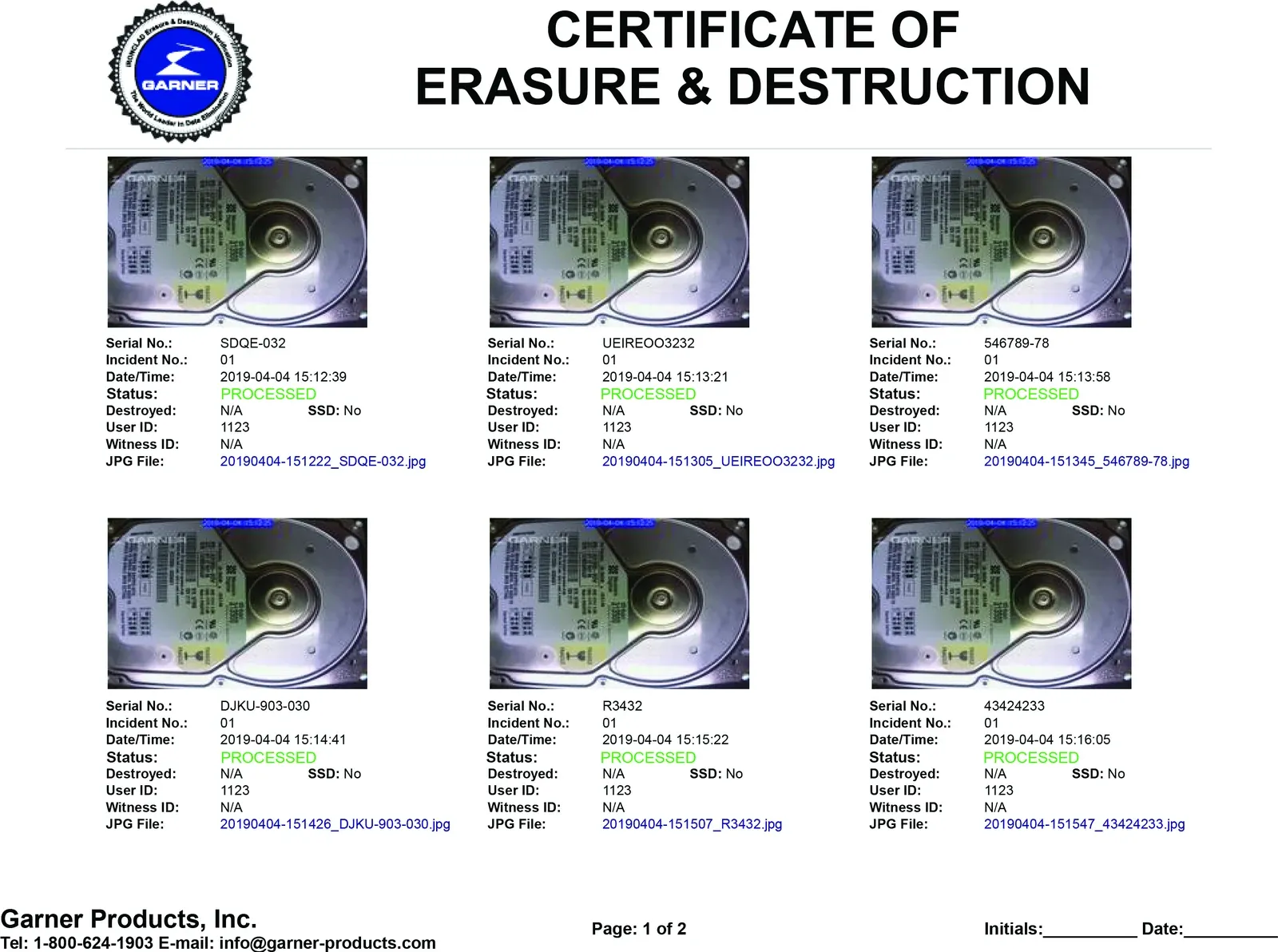

From those records IRONCLAD generates certificates of erasure and destruction with images of each item, plus CSV and Excel files for your own administration or your customer’s audit. Exports go via USB or the network, or optionally to DVD.

IRONCLAD comes in two forms. The integrated version is built for a specific Garner machine and reads its results directly; see the order codes below. The universal version works stand-alone as a witness station next to an existing process. Two modes keep the work practical: a verification mode that guides new operators, and a processing mode for speed.

Specifications

Checked against garnerproducts.com on 6 October 2026. Where values differ, the brochure prevails.

Version
IRONCLAD-E (EMEA)
Records per item
serial/asset number, user and witness ID, date, time, location, field strength (degaussers) or crush depth (PD-5E), JPG photo
Result
green PASS or red FAIL after each degauss cycle (Garner degaussers)
Modes
Verification mode with prompts · Processing mode for speed
Reports
certificates of erasure and destruction (PDF), CSV, Excel, JPG; gauss test log
Export
USB, Ethernet; optional DVD burner
Included
image capture system, touchscreen control head, report software, scanner with stand, stylus, 1 year software support
Screen
7″ touchscreen
Storage
16 GB
Connections
Ethernet · 4 × USB · HDMI
Power supply
90–240 V AC, 47–440 Hz
Power consumption
15 W
Control head (h × w × d)
168 × 244 × 64 mm
Warranty
1 year; scanner 90 days

Versions and order codes

Integrated with TS-1XTE / TS-4XTE
IC-TSXT
Integrated with HD-3XTLE
IC-HD3XTL
Integrated with HD-2XTE
IC-HD2X
Integrated with PD-5E
IC-PD5
Integrated with FLASHPRO-E
IC-FLASHPRO
Stand-alone (universal)
IC-UNIVERSAL

Suitable media

  • Suitable: Hard drives and tapes (with a Garner degausser)
  • Suitable: Hard drives and SSDs (with the PD-5E)
  • Suitable: Solid-state media (with the FLASHPRO-E)
  • Suitable: Any media (universal version)

Service from Bronneberg

Installation

Placement and commissioning at your site, with instruction for your staff.

Maintenance

Periodic inspection by our own service engineers.

Demonstration

See the machine work on your own media, at your site or in Helmond.
